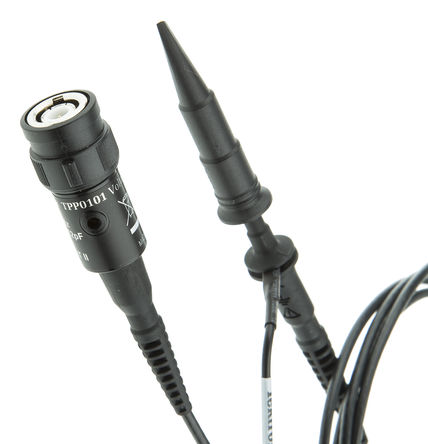

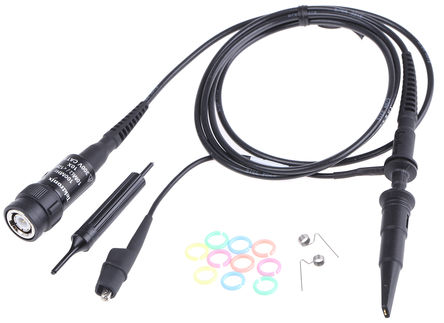

TPP0101 -

The TBS1000B Digital Storage Oscilloscope Series provides you with affordable performance in a compact design. Packed with standard features - including USB connectivity, 34 automated measurements, limit testing, data logging, frequency counter, trend plot and a context-sensitive help menu - the TBS1000B Series oscilloscopes helps you get more done, in less time.

Key performance specifications

200MHz, 150 MHz, 100 MHz, 70 MHz and 50 MHz bandwidth models

2-channel models

Up to 2 GS/s sample rate on all channels

2.5k point record length on all channels

Advanced triggers including pulse and line-selectable video triggers

Key features

7 inch WVGA (800×480) Active TFT Color Display

34 automated measurements

Dual window FFT, simultaneously monitors both the time and frequency domains

Built-in waveform limit and trend plot testing

Dual channel frequency counter

Zoom Function

Automated, extended data logging feature

Autoset and auto-ranging functions

Built-in context-sensitive help

Multiple-language user interface

Small footprint and lightweight - Only 4.9 in. (124 mm) deep and 4.4 lb. (2 kg)

Connectivity

USB 2.0 host port on the front panel for quick and easy data storage

USB 2.0 device port on rear panel for easy connection to a PC
