MDO4054B-3 -

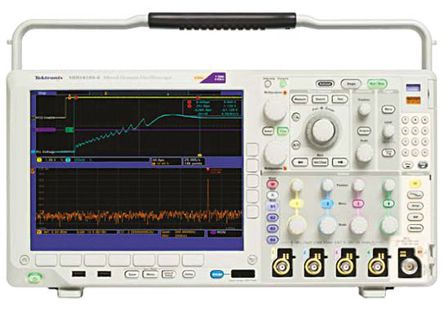

Introducing the world's first oscilloscope that includes a logic analyzer, spectrum analyzer and protocol analyzer — all synchronized for an integrated view. Although you can use the MDO4000B Series simply as a mixed signal oscilloscope or as a spectrum analyzer, the real power comes from the integration of the two. For the first time ever, you can see how your designs perform in both the time and frequency domains on a single instrument. View the RF spectrum at any point in time to see how it changes over time or with device state. Solve the most complicated design issues, quickly and efficiently, with an oscilloscope as integrated as your design.

Key Performance Specifications:

4 analog channels

1 GHz, 500 MHz, 350 MHz, and 100 MHz bandwidth models

Up to 20 M record length on all channels

>340,000 wfm/s maximum waveform capture rate

16 digital channels

MagniVu™ high-speed acquisition provides 60.6 ps fine timing resolution

1 spectrum analyzer channel

9 kHz to 3 GHz or 9 kHz to 6 GHz frequency range models

Ultra-wide capture bandwidth ≥1 GHz

Standard passive voltage probes with 3.9 pF capacitive loading and

500 MHz or 1 GHz analog bandwidth
