MCA3027 -

Timer/Counter, 12 digits, 100ps, 3mV, 27 GHz, 250K Sa/s, 750K Memory

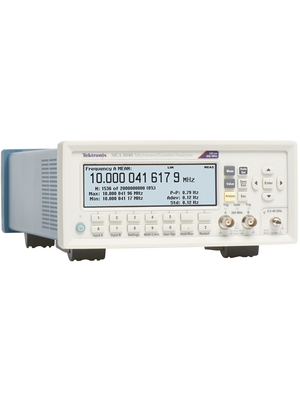

Tektronix MCA3027
聲明：圖片僅供參考，請以實物為準！
制造商產品編號：
MCA3027
倉庫庫存編號：
70136996
技術數據表：
View MCA3027 Datasheet Datasheet
訂購熱線： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！


数据正在加载中...

MCA3027產品概述

Offering up to 40 GHz measurements, the Tektronix MCA3000 Series microwave counter/analyzers pack many different functions into one feature-rich instrument. The integrated power meter and two additional timer/counter channels offer you even more test functionality than other microwave counters on the market. With unprecedented resolution, you can capture very small frequency and time changes. And with the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyze your signal.
Key Performance Specifications
  • 27 GHz and 40 GHz Models
  • Microwave Analyzer Channel with CW or Burst
  • Two 300 MHz General-Purpose Channels
  • –35dBm to +10 dBm Power Range
  • 100 ps Single-shot Time Resolution
  • 12 Digit/s Frequency Resolution, 14 Digit Display
  • 25 ms (Auto_ or Zero (Manual) Acquisition Time
  • 3 mV Voltage Resolution
  • Optional 1.5x10 Ultra High-stability Over Time Base

    • MCA3027產品信息

      Brand/Series  MCA3000 Series
      Depth  15.6" (396.2mm)
      Display Resolution  14 Digits with backlit LCD
      Frequency Range  27 GHz
      Height  3.6" (91.4mm)
      Includes  Microwave/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual, Programmer's Guide, Technical Specifications, Trial version of TimeView? Software, and CD-ROM with National Instruments LabVIEW SignalExpress? Tektronix Edition, Limited Edition Software.
      Input Impedance  1 MΩ / 50 Ω
      Interface  SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2
      Memory  Internal 750 k
      Number of Channels  2
      Resolution  100 ps
      Time, Delay  20 ns to 2 s
      Type  Analyzer/Timer/Counter
      Warranty  3 Year
      Weight  5.8 Lbs.
      Width  8.25" (209.6mm)
    關鍵詞

    MCA3027關聯產品

    • 參考圖片
    • 制造商 / 說明 / 型號 / 倉庫庫存編號
    • PDF
    • 操作

    MCA3027相關搜索

    Brand/Series MCA3000 Series  Tektronix Brand/Series MCA3000 Series  Counters Brand/Series MCA3000 Series  Tektronix Counters Brand/Series MCA3000 Series   Depth 15.6" (396.2mm)  Tektronix Depth 15.6" (396.2mm)  Counters Depth 15.6" (396.2mm)  Tektronix Counters Depth 15.6" (396.2mm)   Display Resolution 14 Digits with backlit LCD  Tektronix Display Resolution 14 Digits with backlit LCD  Counters Display Resolution 14 Digits with backlit LCD  Tektronix Counters Display Resolution 14 Digits with backlit LCD   Frequency Range 27 GHz  Tektronix Frequency Range 27 GHz  Counters Frequency Range 27 GHz  Tektronix Counters Frequency Range 27 GHz   Height 3.6" (91.4mm)  Tektronix Height 3.6" (91.4mm)  Counters Height 3.6" (91.4mm)  Tektronix Counters Height 3.6" (91.4mm)   Includes Microwave/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual, Programmer's Guide, Technical Specifications, Trial version of TimeView? Software, and CD-ROM with National Instruments LabVIEW SignalExpress? Tektronix Edition, Limited Edition Software.  Tektronix Includes Microwave/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual, Programmer's Guide, Technical Specifications, Trial version of TimeView? Software, and CD-ROM with National Instruments LabVIEW SignalExpress? Tektronix Edition, Limited Edition Software.  Counters Includes Microwave/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual, Programmer's Guide, Technical Specifications, Trial version of TimeView? Software, and CD-ROM with National Instruments LabVIEW SignalExpress? Tektronix Edition, Limited Edition Software.  Tektronix Counters Includes Microwave/Counter, line cord, calibration certificate, Quick Start User Manual, CD-ROM with user manual, Programmer's Guide, Technical Specifications, Trial version of TimeView? Software, and CD-ROM with National Instruments LabVIEW SignalExpress? Tektronix Edition, Limited Edition Software.   Input Impedance 1 MΩ / 50 Ω  Tektronix Input Impedance 1 MΩ / 50 Ω  Counters Input Impedance 1 MΩ / 50 Ω  Tektronix Counters Input Impedance 1 MΩ / 50 Ω   Interface SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2  Tektronix Interface SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2  Counters Interface SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2  Tektronix Counters Interface SH1, AH1, T6, L4, SR1, RL1, DC1, DT1, E2   Memory Internal 750 k  Tektronix Memory Internal 750 k  Counters Memory Internal 750 k  Tektronix Counters Memory Internal 750 k   Number of Channels 2  Tektronix Number of Channels 2  Counters Number of Channels 2  Tektronix Counters Number of Channels 2   Resolution 100 ps  Tektronix Resolution 100 ps  Counters Resolution 100 ps  Tektronix Counters Resolution 100 ps   Time, Delay 20 ns to 2 s  Tektronix Time, Delay 20 ns to 2 s  Counters Time, Delay 20 ns to 2 s  Tektronix Counters Time, Delay 20 ns to 2 s   Type Analyzer/Timer/Counter  Tektronix Type Analyzer/Timer/Counter  Counters Type Analyzer/Timer/Counter  Tektronix Counters Type Analyzer/Timer/Counter   Warranty 3 Year  Tektronix Warranty 3 Year  Counters Warranty 3 Year  Tektronix Counters Warranty 3 Year   Weight 5.8 Lbs.  Tektronix Weight 5.8 Lbs.  Counters Weight 5.8 Lbs.  Tektronix Counters Weight 5.8 Lbs.   Width 8.25" (209.6mm)  Tektronix Width 8.25" (209.6mm)  Counters Width 8.25" (209.6mm)  Tektronix Counters Width 8.25" (209.6mm)
    参考价格及参考库存
      美国2号仓库    仓库直销，订单金额100元起订，满300元含运，满500元含税运，有单就有优惠，量大更优惠，支持原厂订货
    型号 制造商 描述 操作
    MCA3027
    [更多]    		 Tektronix Inc

    Frequency Counters Microwave/Counter 27 GHz / 100 ps

    RoHS: Compliant

    		搜索
      英国2号仓库    仓库直销，订单金额100元起订，满300元含运，满500元含税运，有单就有优惠，量大更优惠，支持原厂订货
    型号 制造商 描述 操作
    MCA3027
    [更多]    		 Tektronix Inc

    "Timer/Counter, 12 digits, 100ps, 3mV, 27 GHz, 250K Sa/s, 750K Memory"

    RoHS: Not Compliant

    		搜索
    查看资料
      日本5号仓库    仓库直销，订单金额100元起订，满300元含运，满500元含税运，有单就有优惠，量大更优惠，支持原厂订货
    型号 制造商 描述 操作
    MCA3027
    [更多]    		 Tektronix Inc

    Counter 2 x 300 MHz + 1 x 27 GHz Dimensions L x W x H: 395 x 210 x 90 mm Weight: 2.7 kg Delivery with: Calibration Certificate / Documentation CD / Power Cable Display: Numeric / Graphic Electrical supply: 100...240 V @ 50...400 Hz Frequency range: 0.001 Hz...27 GHz Input connector: BNC Interfaces: GPIB / USB Resolution, display: 14 Digits Channel analog: 3 Frequency range (LF) AC-coupled @ 1 MOhm: 300 MHz Frequency range (LF) AC-coupled @ 50 Ohm: 300 MHz Frequency range (LF) DC-coupled: 300 MHz Frequency range (RF) AC-coupled @ 50 Ohm: 27 GHz Frequency resolution: 0.001 Hz Time resolution single-shot: 100 ps

    		搜索
    查看资料
      日本5号仓库    查看更多相关产品
    参考图片 制造商 / 说明 / 型号 / 仓库库存编号 PDF 操作

    Tektronix - MCA3027 - Counter 2 x 300 MHz + 1 x 27 GHz 100 ps, MCA3027, Tektronix    		Tektronix
    Counter 2 x 300 MHz + 1 x 27 GHz 100 ps, MCA3027, Tektronix

    型号：MCA3027
    仓库库存编号：176-36-320

    		搜索

    Tektronix - MCA3027 - Counter 2 x 300 MHz + 1 x 27 GHz 100 ps, MCA3027, Tektronix    		Tektronix
    Counter 2 x 300 MHz + 1 x 27 GHz 100 ps, MCA3027, Tektronix

    型号：MCA3027
    仓库库存编号：176-36-320

    		搜索
