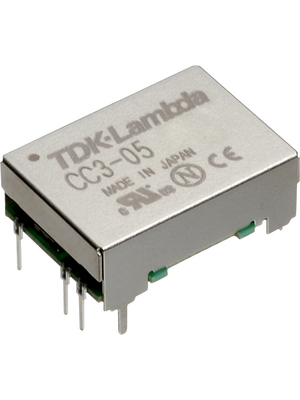

CC3-0512SF-E -

TDK-Lambda CC Series DC-DC Converters offer high density and cost-effectiveness with output voltages of 3.3V, 5V, 12V or 15Vdc and output power ratings of 3 to 30-watts. The CC modules are available in thru-hole or SMT packages, with or without a shielded metal case, are suitable for extended temperature range applications from -40 to +85°C, and are fully-regulated with high efficiency (92% typical). CC Series DC-DC Converters are ultra compact, fully isolated converters that feature wide range DC inputs (24V or 48V nominal) which make them ideal for telecom, test, industrial, and broadcast.

CC-E Series

Compact Footprint and Low Profile — Takes Up Less Space on Your Board

Self Contained — Requires No External Components

Multiple Output Voltages for Easier System Integration

Open Frame — Lighter Weight

Through-Hole Mount DIP Packages (F-E Suffix)

Available in Surface Mount DIP Package (Use R-E Suffix)

Five-Year Warranty

5 V, 12 V, 24 V and 48 V Inputs

3.3 to 30 V Single, ±12 to 15 V Dual Outputs

Output Voltage Adjustment

Input-Output Isolation

CC1R5 — 0.650 L × 0.654 W × 0.335 H Inches

CC3 — 0.900 L × 0.654 W × 0.335 H Inches

CC6 — 0.900 L × 0.831 W × 0.335 H Inches

CC10 — 1.400 L × 0.890 W × 0.335 H Inches
