CUB30000 -

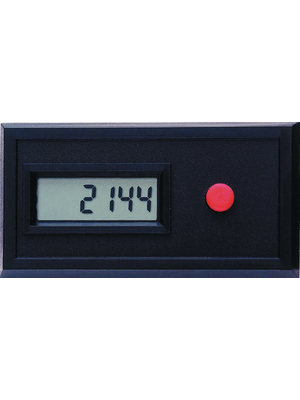

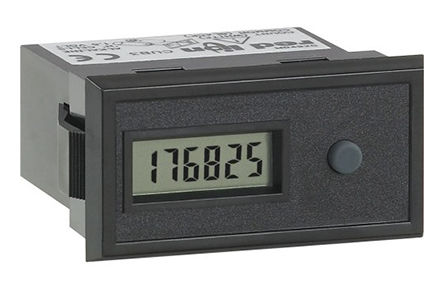

Counter; Mini; Front Reset; 6 DIGIT LCD; Battery Powered

Red Lion Controls CUB30000
聲明：圖片僅供參考，請以實物為準！
制造商產品編號：
CUB30000
倉庫庫存編號：
70030336
技術數據表：
View CUB30000 Datasheet Datasheet
訂購熱線： 400-900-3095  0755-21000796, QQ:800152669, Email:sales@szcwdz.com
由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！
  美国1号仓库    仓库直销，订单金额100元起订，满300元含运，满500元含税运，有单就有优惠，量大更优惠，支持原厂订货
型号 制造商 描述 实时库存 起订量 实时单价
(含税)		 货期
(工作日)		 操作
CUB30000
库存编号:RLC03-ND		 Red Lion Controls COUNTER LCD 6 CHAR 3V PANEL MT0
起订		询价需咨询 询价
查看资料

CUB30000產品概述

The CUB3s are miniature electronic counters. The CUB3 has front panel reset, while the CUB3R has remote reset. These units fill a wide variety of applications. The CUB3s have a rugged reinforced nylon case that snap fits into a standard rectangular opening without screws or other hardware. Hook up is simply a matter of connecting two wires, and since the operating voltage is only 3 volts and currents in micro amps, almost any size wire can be used. No external power is required since the internal batteries provide years of uninterruptible service.

Features:
  • Ideal for Portable, Mobile or Stationary Industrial Applications
  • Available in Two Versions: Front Reset/Remote Reset
  • Count Speed: 100 Counts/Sec
  • Operating Temp.: –30°C to +75°C
  • Weight: 3 Oz.
  • Panel Cutout: 1" × 2"

    • CUB30000產品信息

      Application  Industrial
      Approvals  EN 61010-1, IEC 1010-1
      Bezel  NEMA 4X?IP65 Sealed Front Panel
      Brand Family  CUB
      Brand/Series  CUB Series
      Connection Type  Snap-In
      Counter Type  Miniature Electronic
      Cut Out, Panel  2 L x 1 H in., 50 L x 25 H mm "
      Dimensions  1.10 H x 2.09 W x 1.87 D"ches
      Dimensions, Cutout, Inches  51 x 21 mm mm
      Display Digit Height  5 mm mm
      Display Type  LCD
      Function  Counter
      Input Signal Type  Switch Contact or Solid State Transistor
      Input Type  Switch Contact or Solid State Transistor
      Measuring Range  0 to 999999 hrs. hrs.
      Mounting Type  Panel Mount
      Number of Digits  6 Digits
      Operating Temperature, Maximum  75 °C
      Operating Temperature, Minimum  -30 °C
      Primary Type  Electronic
      Special Features  Self-Powered, Low-Cost/High Performance
      Supply Voltage  3 VDC VDC
      Temperature Range  -30 to +75 °C °C
      Temperature, Opening, Maximum  75 °C °C
      Temperature, Operating, Minimum  -30 °C °C
      Type  Electronic
