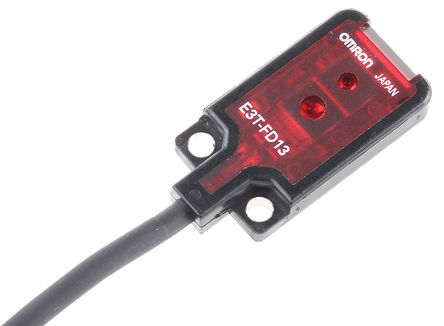

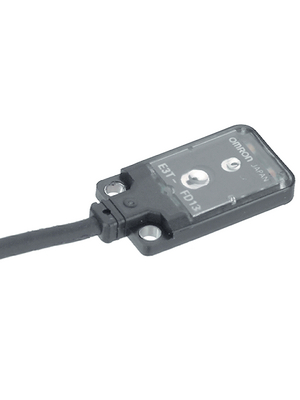

E3T-FD13 -
SENSOR, DIFFUSE-REFLECTIVE, PNP, 5-30MM, LIGHT-ON, FLAT
- 制造商產品編號：
- E3T-FD13
- 倉庫庫存編號：
- 70178317
由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！
E3T-FD13產品概述
Features:
Side View and Thin Flat Models Fit Space-Confined Areas Visible Red Beam Simplifies Alignment for Installation and Servicing Rated IP67 for Water Washdown Light-ON and Dark-ON Operation Models Pre-Wired with 2 m Cable Compact Size: Side View: 18.5 H × 7 W × 9.5 D mm; Flat: 19 H × 12 W × 3.5 D mm Specifications: Voltage Range: 10.8-26.4 VDC Load Rating: NPN or PNP Open Collector, 50 mA Max. Directional Angle: 2° to 20° (Through-Beam Emitter, Retro-Reflective); 2° to 20° (Through-Beam Receiver) Operating Ambient: –25° to +55°C, 35% to 85% RH
