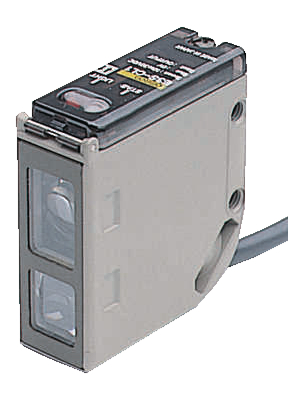

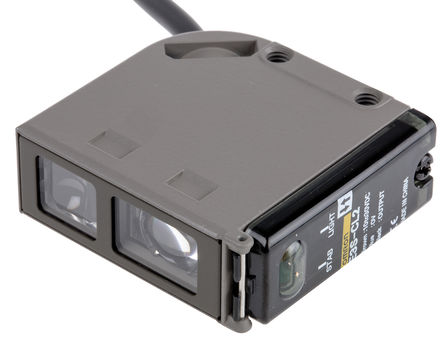

E3S-CL2 -

Photoelectric, Range: Adjustable 5 to 50 cm, PNP or NPN, 2M cable, Back Supress

聲明：圖片僅供參考，請以實物為準！

訂購熱線： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！

Features:

Rugged Zinc Diecast Housing

Vibration Resistance of 10 Hz to 2 kHz, Shock Resistance of 1,000 m/s²

NPN/PNP Switch Selectable Output

Retro-Reflective Sensors Include E39-R1 Reflector

Pre-Wired with 2 m Cable

Specifications:

Enclosure Meets NEMA 4X, 6P and IP67 for Washdowns

Voltage Range: 10-30 VDC

Load Rating: NPN or PNP Open Collector, 100 mA at 30 VDC

Operating Ambient: –25° to +55°C, 35% to 85% RH

Brand/Series	E3S-CL Series
IP Rating	IP67
Light Source	Infrared (880nm)
Output	NPN/PNP - Dark-ON/Light-ON - Selectable
Range, Measurement	5 to 200 mm
Response Time	2 ms
Sensing Mode	Reflective, Diffuse
Set Point	Adjustable
Supply Voltage	10 to 30 VDC
Temperature Range	-25 to 55 degC
Termination	Leadwires
