CP1LM60DRD -

CONTROL LOGIC 36 IN 24 OUT 24V

RoHS: Compliant | pbFree: Yes

CONTROL LOGIC 36 IN 24 OUT 24V

RoHS: Compliant | pbFree: Yes

Controllers 36 in 24 Relay DC in CP1 PLC

RoHS: Compliant

High Performing Programmable Controller With Embedded Ethernet

RoHS: Compliant

36 IN,24 RELAY,DC IN, CP1 PLC - Bulk (Alt: CP1L-M60DR-D)

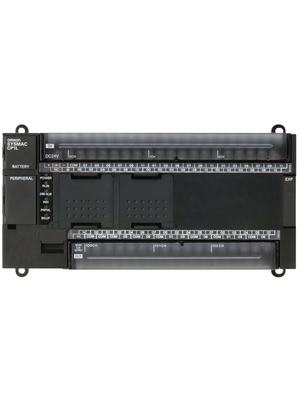

PLC CP1L CPU 60 I/O relay output

RoHS: Compliant

36 IN,24 RELAY,DC IN, CP1 PLC CP1LM60DRD

Programmable logic controller Dimensions W x H x D: 195 x 110 x 85 mm Inputs: 36 digital, 1 analogue (Potentiometer 8 Bit), 2 high speed counter Inputs, abbreviated: 36 DI, 1 AI (Potentiometer 8 Bit), 2 HS Operating temperature: 0...+55 °C Outputs: 24 relay Outputs, abbreviated: 24 RO Analogue inputs: Potentiometer 8 Bit Certification: CE, UL, Lloyds Communications interface: 1 x USB Data buffer: Battery, for maxum 5 years Data memory: 32 kWords Expandability: 3 modules Inputs/outputs, max.: 180 Internal program memory: 10 kSteps Operating voltage: 24 VDC Processing time per binary statement: 0.55 μs Real-time clock: yes Series: CP1 Switching capacity: 2 A @ 24 VDC / 250 VAC Protection rating: IP 20 Termination type: Screw Terminal, Removable No. of analogue inputs: 1 No. of digital inputs: 36 No. of high speed counter: 2 No. of relay outputs: 24

36 IN,24 RELAY,DC IN, CP1 PLC
