MIKROE-506 -

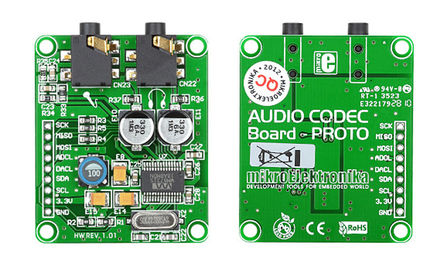

Audio Codec - PROTO Development Board
The Audio Codec - PROTO Development Board uses the WM8731 audio codec to: a) Convert a digital audio recording into an analog audio signal for headphones. b) Convert an analog audio signal from microphone to digital audio recording. Features & Benefits of the Audio Codec - PROTO

WM8731 audio codec

I²C interface for board operation

SPI interface for data transfer

Driver for earphones

Connection pads

Headphone & microphone audio connectors

Selectable ADC High Pass Filter

ADC & DAC sampling frequency 8 kHz-96 kHz

Energy saving

Excellent audio quality

3.3 V power supply
