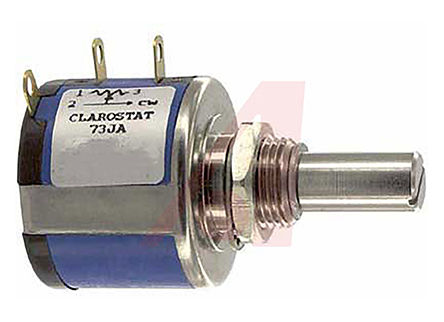

73JA2K -
Potentiometer, Wirewound, Rest 2 kOhm, Panel, 10 Turns, Pwr-Rtg 2W
聲明：圖片僅供參考，請以實物為準！
- 制造商產品編號：
- 73JA2K
- 倉庫庫存編號：
- 70153052
由于產品數據庫龐大，部分產品信息可能未能及時更新，下單前請與銷售人員確認好實時在庫數量，謝謝合作！
73JA2K產品概述
73 Series Precision Potentiometer
The 73 series is a 2 watt precision 10-turn potentiometer. The 73JB is the economical version of the 73JA, offering all the electrical features of the 73JA, but employing a long life nylon shaft construction. The 73JB has a metal bushing with glass filled black nylon shaft. The 73JA has a stainless steel shaft and metal bushing. Both shafts are 1/4" dia, 13/16" long FMS and have 5/16" plain threaded bushing, screwdriver slots, and 50,000 cycles rotational life. End resistance is 0.3% of total resistance or 1 Ω, whichever is greater. 5% tolerance. 500 WV max.
The 73 Series is a 2 watt precision 10-turn potentiometer. The 73JB is the economical version of the 73JA, offering all the electrical features of the 73JA, but employing a long life nylon shaft construction. The 73JB has a metal bushing with glass filled black nylon shaft. The 73JA has a stainless steel shaft and metal bushing. Both shafts are 1/4" dia, 13/16" long FMS and have 5/16" plain threaded bushing, screwdriver slots, and 50,000 cycles rotational life. End resistance is 0.3% of total resistance or 1 Ω, whichever is greater. 5% tolerance. 500 WV max. Stop Torque: 75 oz.-in. Power Rating: 2 watts @ 70°C.
0.312 in. bushing length, slotted shaft ending, 500 V working voltage.
Datasheet
