TP220產(chǎn)品概述

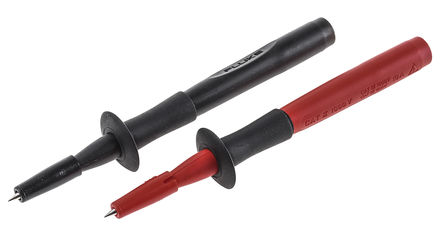

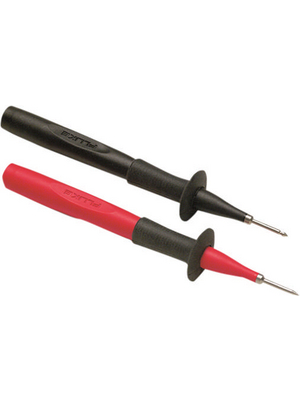

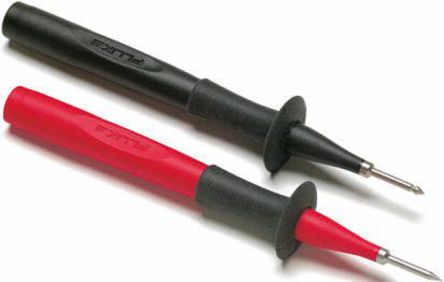

TP220 SureGrip™ Industrial Test Probe
SureGrip™ accessories are designed to improve steadiness in slippery hands. Rubber overmolded surfaces and finger-hugging curves give the user a comfortable, reliable grip on the accessory so they can focus on making an accurate measurement.
Features:
One pair (red, black) of Industrial test probes
Sharp, 12 mm stainless steel tip provides reliable contact
Flexible finger barrier improves grip
Recommended for use with TL222 and TL224 test leads
CAT IV 600 V; CAT III 1000 V, 10 A rating. UL listed
One year warranty
Increased Functionality with New Jaw Designs
Multi-Form Teeth for Better Gripping
Improved Finger Holds
Better Strain Reliefs
AC220 — SureGrip™ Alligator Clip
Blunt Tip Grabs Round Screw Heads
Insulated, Nickel Plated Jaws Grip Objects Up to 3/8"
Use with TL222 Test Leads
AC280 — SureGrip™ Hook Clip
Narrow Profile at Tip, 0.22"
Hook Opening from 0.08" at Base to 0.2" at Front
Use with TL222 Test Leads
AC283 — SureGrip™ Pincer Clip
4.5" Flexible, Insulated Shaft
Nickel Plated Pincers Open to 0.2"
Use With TL222 Test Leads
AC285 — SureGrip™ Large Alligator Clip
Multi-Purpose Tooth Pattern
Wide Grip Variation from Fine Gauge Wire Up to a 3/4" Nut
Use with TL224 Test Leads
TP220 — SureGrip™ Industrial Test Probe
Sharp, 1/2" Stainless Steel Tips for Improved Contact
Flexible Finger Barrier Improves Grip
Use with TL224 Test Leads
TL220 — Industrial Test Lead Set
Includes Pair: AC220, TP220, TL222
TL222 — Silicone Insulated Test Lead
Extremely Flexible
Resistant to Heat and Cold
Superior Strain Relief
