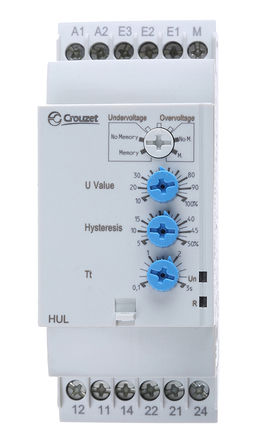

84872120產(chǎn)品概述
Controls AC and DC voltages, with and without memory. When the voltage reaches the threshold set point the output changes state at the end of the selected time delay. Once the voltage drops below the hysteresis (% of the threshold) the output changes instantly. In memory mode the relay remains in the faulted condition until the unit is reset manually. Approvals: UL and cUL Listed and CSA Certified. MUS Series: Underfoot and Overvoltage — Monitors supply voltage. MUSF Series: Undervoltage/ Overvoltage Window — Monitors supply voltage. HU Series: Undervoltage and Overvoltage — Monitors separate voltage from unit supply voltage. All models have 5 amp output relay. Protect expensive equipment from over and under voltage problems.
Features:
MUS/MUSF Space Saving 17.55 mm Package
HU Series Space Saving 35 mm Package
Built-In Time Delays to Eliminate Nuisance Tripping
Monitors AC and DC Voltages
Measures From 0.2 to 600 V
5-50% Hysteresis Range
Latching or Non-Latching Modes
(Memory/No Memory)
Frequency: 50/60 Hz
